Product Description

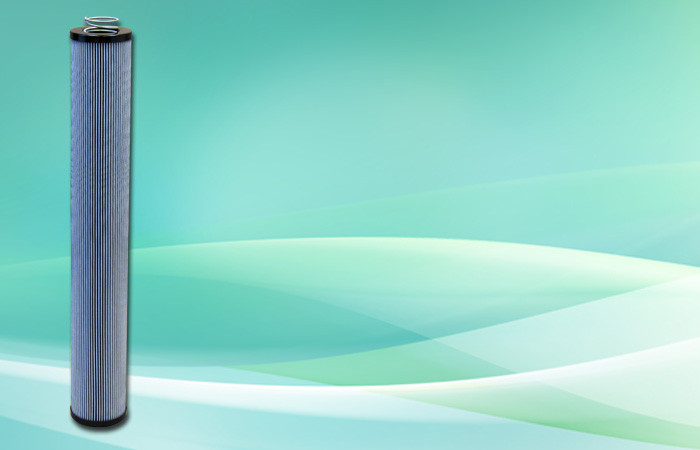

Neo-Pure HYL Hydraulic & Lubrication Filter Cartridges

Neo-Pure HYL Hydraulic & Lubrication Filter Cartridges are absolute-rated Beta 12[c] >= 1000. Multi-layer Dual Phase Microglass pleated media provides high flow rates, low pressure drop and stable & dependable Beta x[c] rated efficiencies. Rigid-pleat structure that is supported by an epoxy coated carbon steel mesh with Viton O-ring seal with external hold-down spring. HYL Hydraulic & Lubrication Filter Cartridges are ISO 16889 and Dynamic Filter Efficiency Testing.

Applications for HYL Hydraulic & Lubrication Filter Cartridges:

Bottled Water
Petroleum & Synthetic based Hydraulic Fluids
Turbine & Compressor lube oil
Bearing & Gear oil

OEM Replacement for:

General Electric 358A8836P003
General Electric 358A8836P001
Hilco PH426-01-CG1V
Hilco PH426-11-CG1V
Hycoa V2640120V1
Hypro HPQ20228-12MV
National Filter 2200A2
National Filter 2200FE
National Filter P4260120PC17
National Filtration 2200A3
REP HF12426-1-7
REP HF06426-1-7

Product Specifications:

Micron Rating (Absolute): Beta 12[c] >= 1000
Cartridge Lengths: 26” (66.04 cm)
Inside and Outside Diameters: 2.17” (5.51 cm) ID, 3.78” (9.60 cm) OD
Cartridge Style: Single Open Ended (SOE) with Spring
Flow Direction: Out to In
Maximum Operating Temperature:250°F (121°C) temperature Limit
Recommended Change-Out Differential Pressure: 25 psid (1.72 bar)
Maximum Pressure: 150 psid (10.34 bar)
Materials of Construction–Filter Media: Microglass Supported both Sides, Inner Core: Electro-Tin Plated CS, End Cap: Corrosion Resistant CS/AL

HYL Series Hydraulic & Lubrication Filter Cartridges
